How to install ELK Stack on Ubuntu 18.04

ELK Stack is a powerful and open source platform that can manage a massive amount of logged data.

ELK Stack is the world’s most popular log management platform. It is a collection of open-source products including Elasticsearch, Logstash, and Kibana. All these 3 products are developed, managed and maintained by Elastic.

ELK Stack is a powerful and open source platform that can manage a massive amount of logged data. The inputs log are generally from a graphical web interface (GUI).

  • Elasticsearch is a JSON-based search and analytics engine intended for horizontal scalability and easier management.
  • Logstash is a server-side data processing interface that has the capability to collect data from several sources concurrently. It then transforms it, and then sends the data to your desired stash. It is an open source application.
  • Kibana is used to visualize your data and navigate the Elastic Stack. It is an open source tool as well.

Install and configure ELK Stack on Ubuntu

In this tutorial, we are going to use filebeat to send log data to Logstash. Beats are lightweight data shippers and to begin with, we should have to install the agent on servers.

Step 1) Installing Java 8

ElasticSearch supports Java 8 and 9, but the trouble is Logstash is only compatible with Java 8. Java 9 is not supported yet. Therefore, we are going to install Oracle Java 8.

Launch the Terminal and add Oracle Java 8 repository, followed by a system update, and actual installation.

sudo add-apt-repository ppa:webupd8team/java
sudo apt-get update
sudo apt install oracle-java8-set-default

Pay attention to the Terminal. You will have to agree to license agreement windows and select “yes” to continue. After installation is complete, you can check the java version by using the following commands:

.sudo java -version

Java Version Check
Java Version Check

sudo echo $JAVA_HOME

Check Java Home
Check Java Home

Step 2) Installing and Configuring Elasticsearch

Let’s start with wget command to download Elasticsearch followed by public signing key:

sudo wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -

Secondly, install the apt-transport-https package (Debian based distros needs this).

sudo apt-get install apt-transport-https

Add the repository:

echo "deb https://artifacts.elastic.co/packages/6.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-6.x.list

Update the repo list and install the package:

sudo apt-get update
sudo apt-get install elasticsearch

Let’s modify “elasticsearch.yml” file:

sudo vim /etc/elasticsearch/elasticsearch.yml

Uncomment “network.host” and “http.port”. Following configuration should be added:

network.host: localhost
http.port: 9200

Next, save and close the file.

To make sure ElasticSearch works seamlessly, enable it on boot and Start ElasticSearch.

sudo systemctl enable elasticsearch.service
sudo systemctl start elasticsearch.service

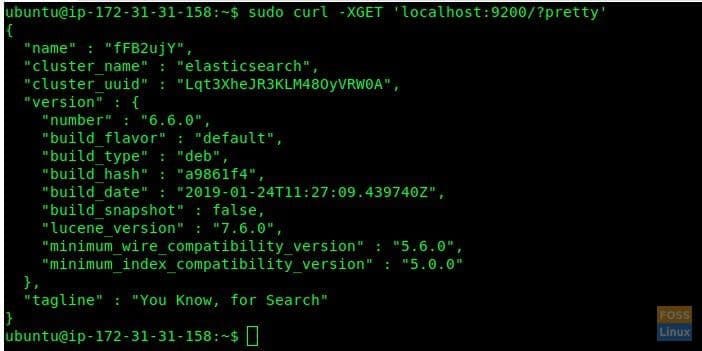

Check installation:

sudo curl -XGET 'localhost:9200/?pretty'

Check ElasticSearch
Check ElasticSearch

Step 3) Installing Kibana

Let’s start installing Kibana now and modify Kibana settings:

sudo apt-get install kibana
sudo vim /etc/kibana/kibana.yml

Uncomment following lines:

server.port: 5601
server.host: "localhost"
elasticsearch.url: "http://localhost:9200"

Save and exit the File.

Enable it on boot and start Kibana service:

sudo systemctl enable kibana.service
sudo systemctl start kibana.service

Step 4) Configuring Nginx as Reverse Proxy for Kibana

In the similar lines, let’s install Nginx, configure it, and start the service. Use the following commands one at a time:

sudo apt-get install nginx apache2-utils

Configure Virtual host:

sudo vim /etc/nginx/sites-available/elk

Add the following configuration to file:

 server {
    listen 80;

    server_name elk.fosslinux.com;

    auth_basic "Restricted Access";
    auth_basic_user_file /etc/nginx/.elkusersecret;

    location / {
        proxy_pass http://localhost:5601;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }
}

Create user and password file for web browser authentication:

sudo htpasswd -c /etc/nginx/.elkusersecret elkusr

ELK Authentication
ELK Authentication

Enter password and repeat. Check Nginx Configurations:

sudo nginx -t

Enable Nginx on system boot and restart the service:

sudo systemctl enable nginx.service
sudo systemctl restart nginx.service

Step 5) Installing and Configuring Logstash

Install Logstash:

sudo apt-get install logstash

Here we are going to generate SSL certificate key to secure log transfer from file beat client. Modify the “hosts” file before creating the SSL certificate.

sudo vim /etc/hosts

Add the following line to file. Make sure to change IP and server name to yours.

172.31.31.158 elk-server elk-server

When done, save and exit the file.

Now change directory to Logstash.

sudo cd /etc/logstash/

Create a folder for SSL:

sudo mkdir ssl

Generate SSL certificate. Change elk-server to your server name in the below command.

sudo openssl req -subj '/CN=elk-server/' -x509 -days 3650 -batch -nodes -newkey rsa:2048 -keyout ssl/logstash-forwarder.key -out ssl/logstash-forwarder.crt

Create following files inside “/etc/logstash/conf.d”.

sudo cd /etc/logstash/conf.d/

create a filebeat-input file using vim.

sudo vim filebeat-input.conf

Add the following lines to it.

input {
  beats {
    port => 5443
    type => syslog
    ssl => true
    ssl_certificate => "/etc/logstash/ssl/logstash-forwarder.crt"
    ssl_key => "/etc/logstash/ssl/logstash-forwarder.key"
  }
}

Save and close the file and create a new configuration file.

sudo vim syslog-filter.conf

Add the following contents to it.

filter {
  if [type] == "syslog" {
    grok {
      match => { "message" => "%{SYSLOGTIMESTAMP:syslog_timestamp} %{SYSLOGHOST:syslog_hostname} %{DATA:syslog_program}(?:\[%{POSINT:syslog_pid}\])?: %{GREEDYDATA:syslog_message}" }
      add_field => [ "received_at", "%{@timestamp}" ]
      add_field => [ "received_from", "%{host}" ]
    }
    date {
      match => [ "syslog_timestamp", "MMM  d HH:mm:ss", "MMM dd HH:mm:ss" ]
    }
  }
}

Save and exit the file. Create elasticsearch output file.

sudo vim output-elasticsearch.conf

Add the following lines to it.

output {
  elasticsearch { hosts => ["localhost:9200"]
    hosts => "localhost:9200"
    manage_template => false
    index => "%{[@metadata][beat]}-%{+YYYY.MM.dd}"
    document_type => "%{[@metadata][type]}"
  }
}

Let’s enable Logstash on boot and start the service:

sudo systemctl enable logstash.service
sudo systemctl start logstash.service

Step 6) Installing and Configuring Filebeat on Client servers

Start with editing the hosts file to add elk host entries. Make sure to replace IP and name with yours.

sudo vim /etc/hosts
172.31.31.158 elk-server

Save and exit the file.

Download and install the Public Signing Key:

sudo wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -

Install “apt-transport-https” and add repo.

sudo apt-get install apt-transport-https
sudo echo "deb https://artifacts.elastic.co/packages/6.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-6.x.list

Update repo and install Filebeat.

sudo apt-get update
sudo apt-get install filebeat

Modify Filebeat configurations.

sudo vim /etc/filebeat/filebeat.yml

Find the following line and modify the value to “true”.

enabled: true

Here we are not modifying log path and Filebeat will forward all logs inside “var/log” folder

  paths:
    - /var/log/*.log

Uncomment the following lines:

output.logstash:
  # The Logstash hosts
  hosts: ["elk-server:5443"]
  ssl.certificate_authorities: ["/etc/filebeat/logstash-forwarder.crt"]

Comment Elasticsearch:

#output.elasticsearch:
  # Array of hosts to connect to.
  # hosts: ["localhost:9200"]

Save and exit the file.

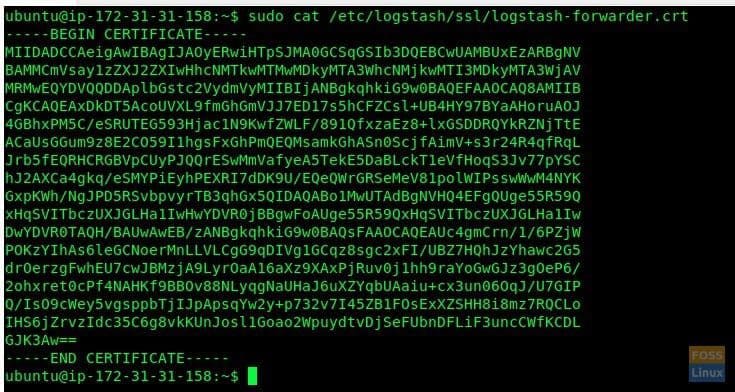

Now go to ELK server and get “logstash-forwarder.crt” contents

sudo cat /etc/logstash/ssl/logstash-forwarder.crt

SSL Crt
SSL Crt

copy output and then go to Elk client-server.

Create a certificate file

sudo vim /etc/filebeat/logstash-forwarder.crt

insert copied output and save & exit.

Enable filebeat on system boot Start filebeat service.

sudo systemctl enable filebeat.service
sudo systemctl start filebeat.service

Step 7) Browsing the Kibana Dashboard

Launch your favorite web browser and enter the domain name followed by username and password.

http://elk.fosslinux.com

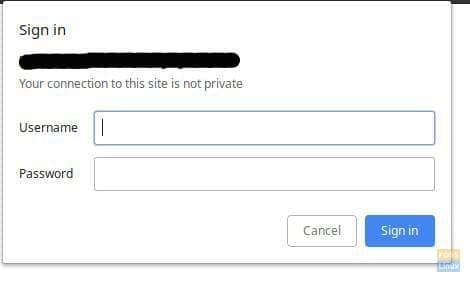

Browser Authentication
Browser Authentication

Enter the created user name and password. You should see the Kibana Welcome page. Click “Explore my Own” button.

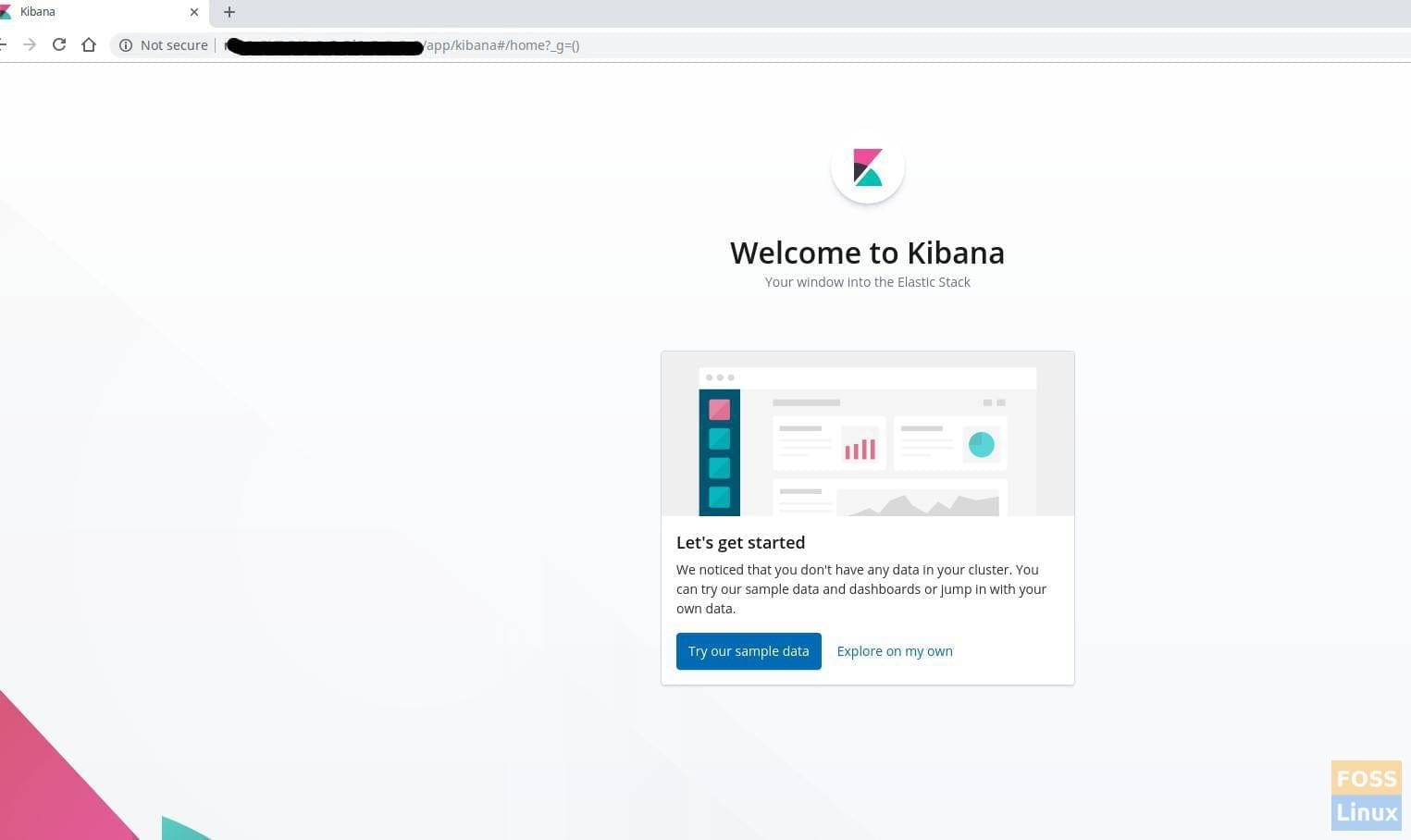

Welcome Kibana
Kibana Welcome Page

You should be directed to the Kibana Home Page.

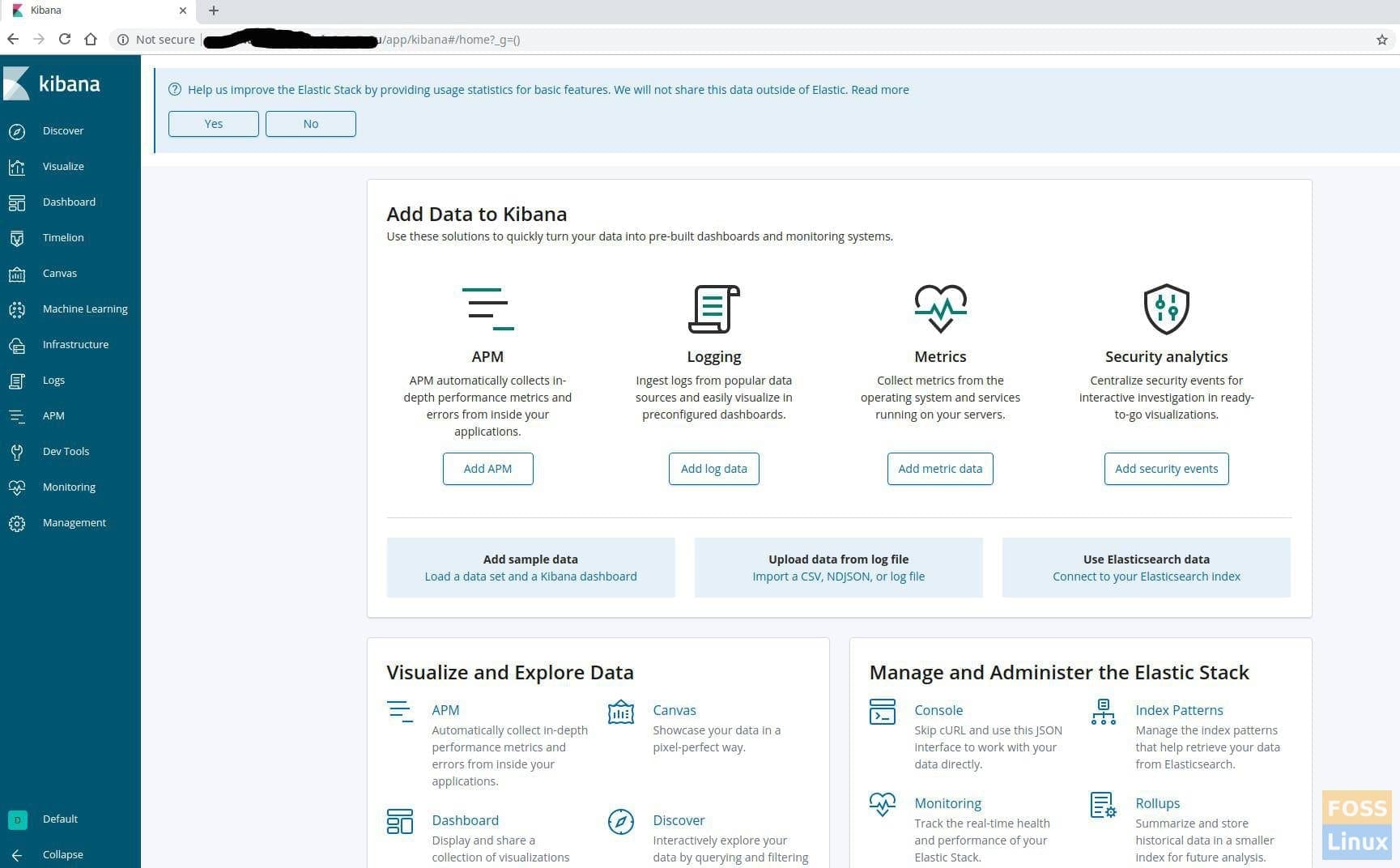

Kibana Home Page
Kibana Home Page

Click “Discover” on the left side. Click “Create index pattern”.

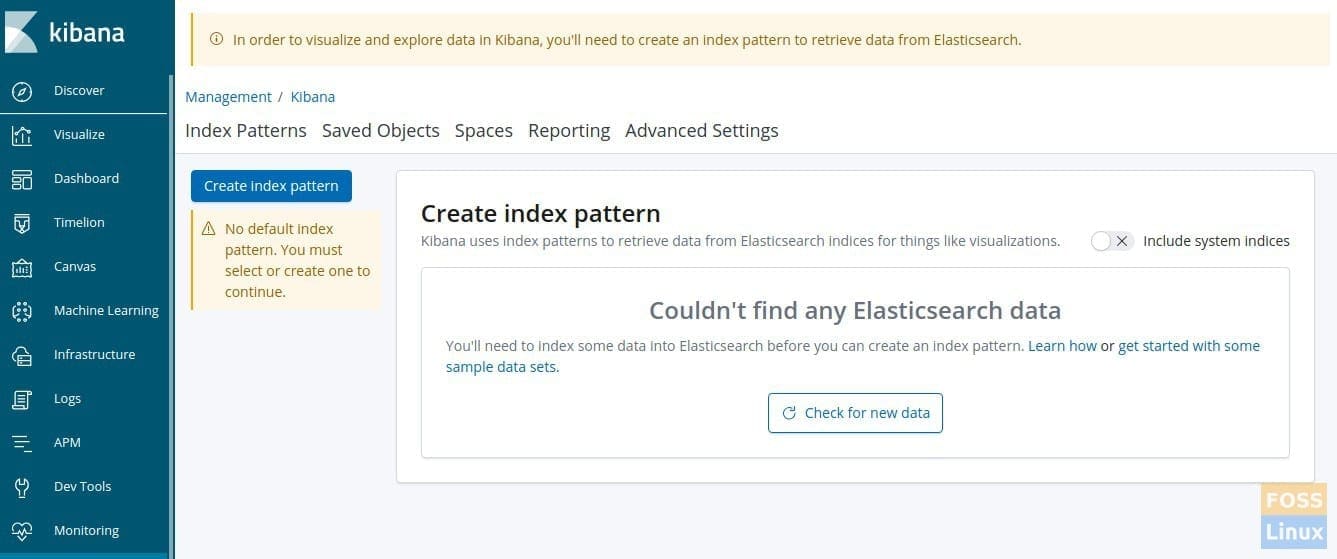

Create Index
Create Index

Then define the index pattern  “filebeat-*”.

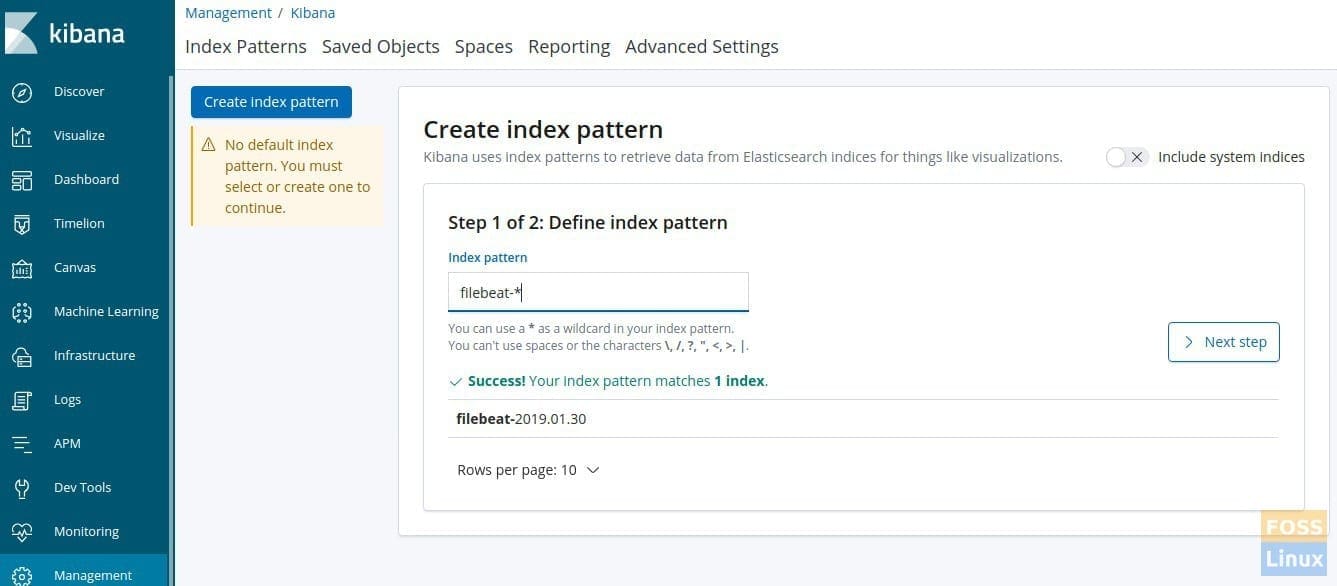

Create New Index
Define Index

Click next and choose @timestamp’ and click ‘Create index pattern’.

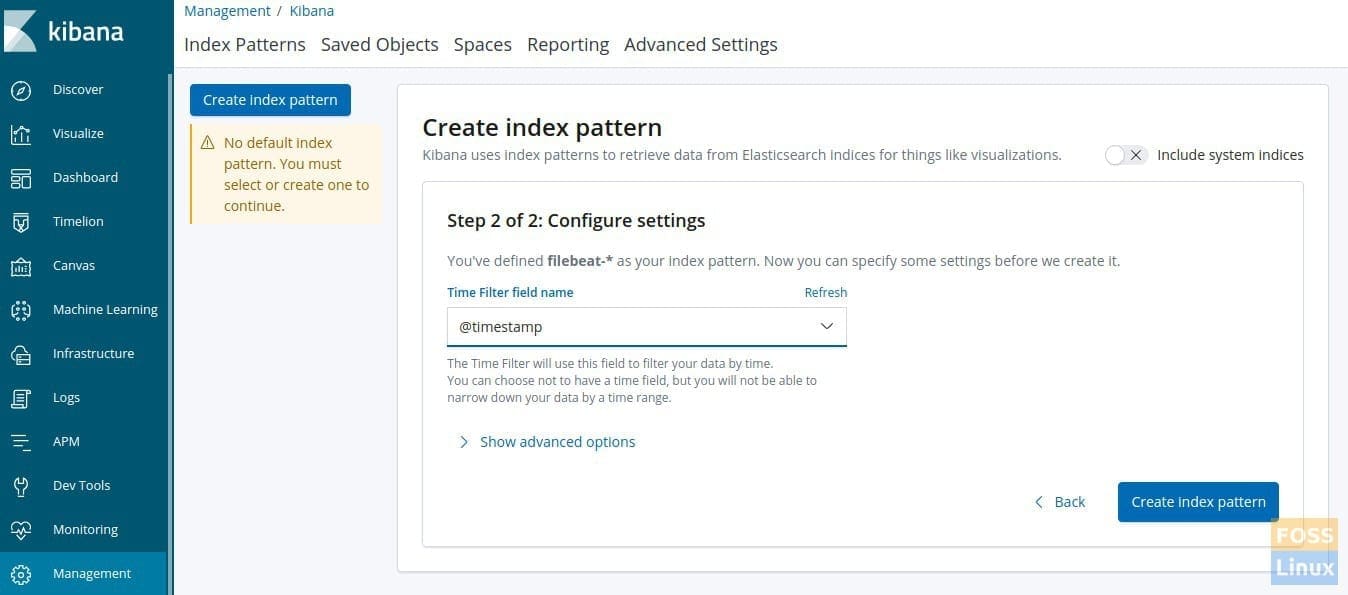

TimeStamp
Choose TimeStamp

Index pattern should get created.

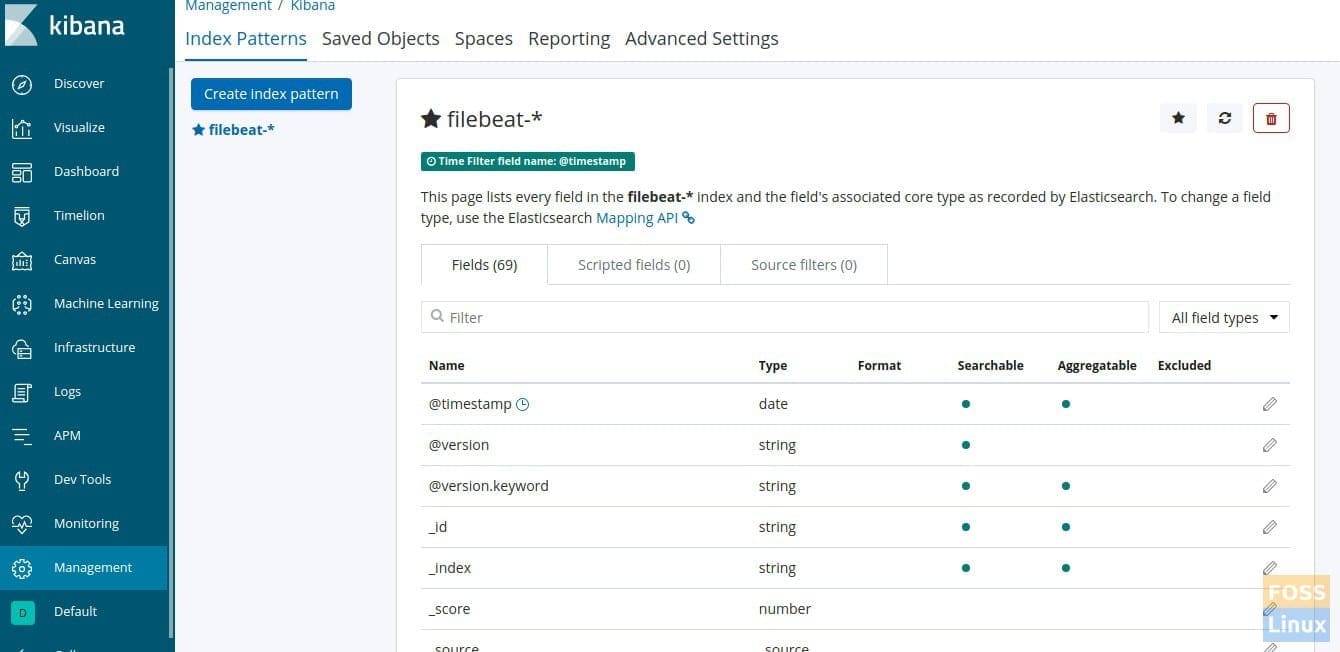

Created Index Pattern
Created Index Pattern

Click the “Discover” Menu to see the server logs.

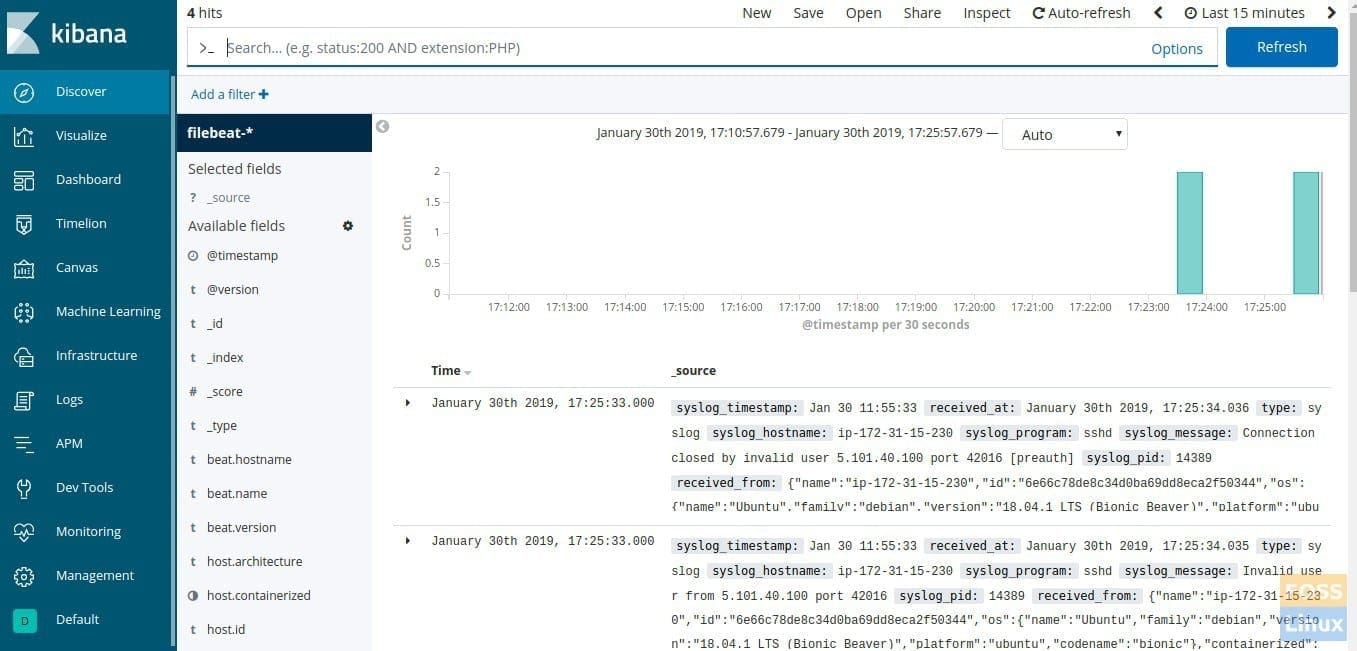

Discover
Discover logs

Logs will be shown as per the time stamp. Click on any timestamp to expand it and see the log file contents and its details.

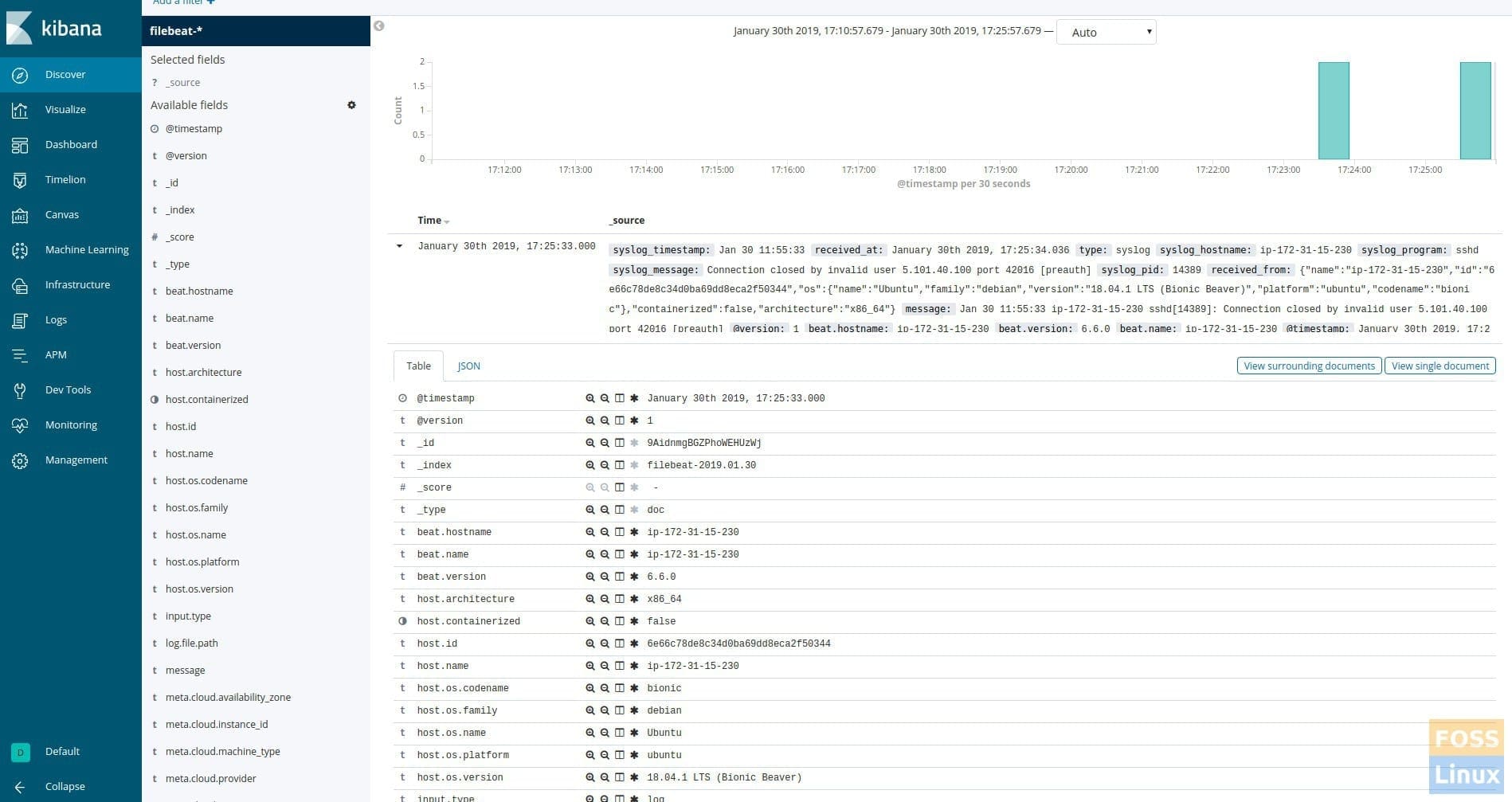

Log Files
Check Log Files

If you reached here, it implies you have successfully installed and configured the ELK stack with filebeat. Got any issues? Feel free to let us know in the comments below.

Darshana
Hey! I'm Darshana, a Linux / DevOps Engineer and also a contributor to FOSS Linux. I enjoy working on various kind of Linux distributions and cloud technologies. During my free time, I love to swim and hike across nature trails. Linux is my love and I'm here to share all my learnings with all of you! Hope you enjoyed reading my article.

4 COMMENTS

  1. Hi Darshana. Thanks for the tutorial! It was very interesting and helpful, but I have some doubts about it.

    1.- When configurating Nginx, you enabled the authentication and refered to an htpasswd file called “.elkusr”. After that, you created an htpasswd file called “.elkusrsecret”. In this case, when it tries to reach the authentication file, the one specified in the configuration doesn’t exist. How’s it going to find the correct file?

    2.- When configurating Filebeat, in the logstash output hosts field, you specified “elk-master” but this name is not in the hosts list of the server and neither in the client configuration. The names added to the hosts lists are “elk-server”, does it work fine like that?

    I followed your tutorial and everything was installed and configured ok, but Filebeat is not able to connect to the server and I don’t know the reason yet. I installed both client and server in separated Ubuntu 18.04 LTS servers and would like to make them talk to each other but I don’t know the reason it doesn’t work yet, maybe it’s something wrong with the configuration of the machine. If you have any suggestion or advice it would be very appreciated!

    Thanks!

    • Hi Pablo,
      Thank you for the comment.
      1. It is my bad. Nginx configurations should change as follows
      “auth_basic_user_file /etc/nginx/.elkusersecret;”

      2. elk-master must change to elk-server

      I will update the post.

      Please run below command on elk-server to check logstash port.

      netstat -tunlp | grep 5443

      If the port is available to go to the filebeat server.

      Then try to ping
      ping elk-server (you should add elk-server IP to your hosts file)

      if ping is working do telnet

      telnet elk-server 5443

      if you cant it may be the issue on the firewall.

      check logstash log file and verify that it started without errors.

      Just try to disable firewall and check

      ufw disable

      If you have any issue I am really happy to help you mate.
      Regards
      Darshana

  2. me too, I can’t find filebeat index.

    elk-server
    netstat -tunlp | grep 5443

    filebeat server
    ping elk-server
    telnet elk-server 5443

    all good
    but I can’t find filebeat index on kibana

    thank you
