Install and configure Check_MK Server on CentOS 7

Check_MK Server is one of the best monitoring system out there that was started originally as an extension to the Nagios monitoring system. It is Free and Open-Source Software (FOSS).

Are you looking for an IT monitoring solution that is free and open source as well as compelling with latest technologies? Check_MK Server is one of the best monitoring system out there that was started originally as an extension to the Nagios monitoring system.

It supports creating a rule-based configuration using Python and also allows monitoring of more machines from a single Nagios server. Specifically, Check_MK Server can handle a pleura of monitoring tasks including Server, Application, Network, Cloud, Storage, Database, Environment, and Container. That’s almost everything even a large organization will ever need.

Here we are going to install and configure the CRE version (Check_MK Raw Edition) which is open-source and 100% free.

Install and Configure Check_MK Server on CentOS

Launch terminal and login as root.

Step 1 – Disable SELinux

Let’s check SELinux status and disable it if it’s enabled.

getenforce

Edit SELinux configuration file:

vim /etc/sysconfig/selinux

Change SELINUX=enforcing to SELINUX=disabled

Save and exit the file followed by a reboot.

reboot

Step 2 – Installing Prerequisites

Let’s start with updating the system.

yum update

Next, install NTP and check its service status.

yum install ntp
systemctl status ntpd

If the service is not started, start it using below command:

systemctl start ntpd

Enable NTP on system boot:

systemctl enable ntpd

Modify firewall rules to allow NTP service. Run the following commands to enable service.

firewall-cmd --add-service=ntp --zone=public --permanent
firewall-cmd --reload

Step 3 – Add EPEL Repository to the System

We have to install EPEL repository because some of the check_mk packages are not available in default repositories.

yum install epel-release -y

List repository.

yum repolist

Step 4 – Install Check_MK

We are going to download a free version of check_mk. Head over to the official download page and copy the relevant link to use in the command below after wget.

wget https://mathias-kettner.de/support/1.5.0p12/check-mk-raw-1.5.0p12-el7-38.x86_64.rpm

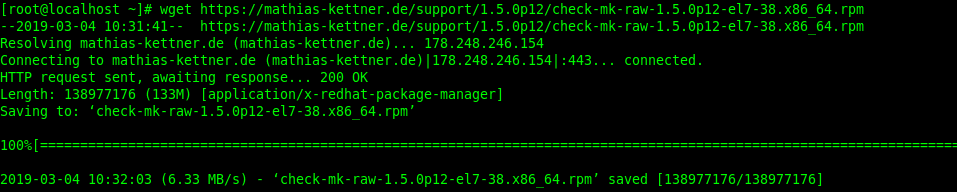

Download Package
Download Package

Install Check_MK and all the dependencies required for Check_MK.

yum install check-mk-raw-1.5.0p12-el7-38.x86_64.rpm

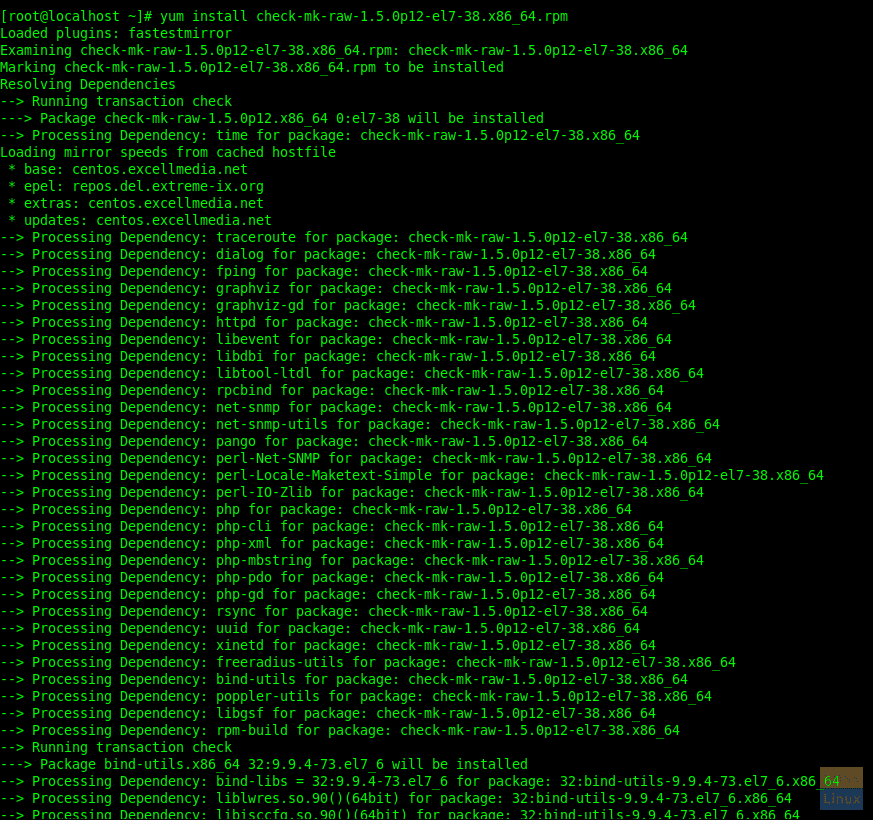

Install Check MK
Install Check MK

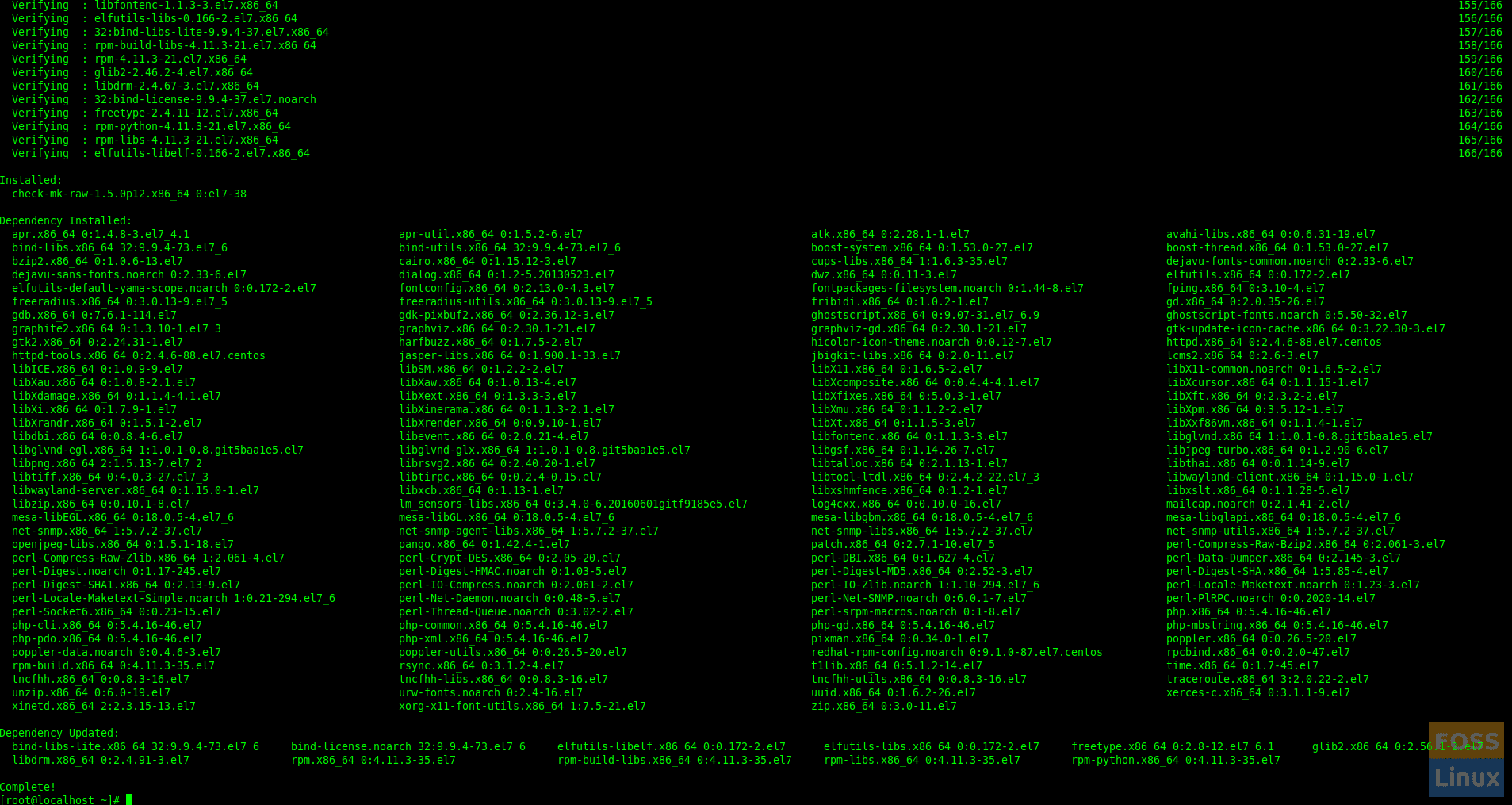

Finished Check-MK Installation
Finished Check-MK Installation

Now modify Firewall rules for HTTP.

firewall-cmd --add-service=http --zone=public --permanent
firewall-cmd --reload

Step 5 – Create and start Check_MK server

Check “omd ” command if it works or not.

omd version

Configure the Check_mk server

To create Check_MK server run following command:

omd create fosslinuxmonitor

You can replace “fosslinuxmonitor” with whatever the name you want.

omd create fosslinuxmonitor

Then you should get a similar output as below:

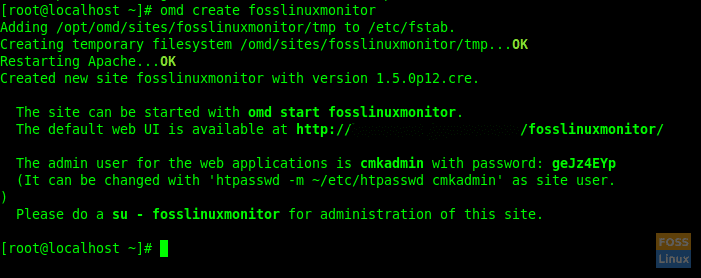

Create Check-MK-Server
Create Check-MK-Server

Here you can see web URL, username and password for login.

Start created server:

omd start fosslinuxmonitor

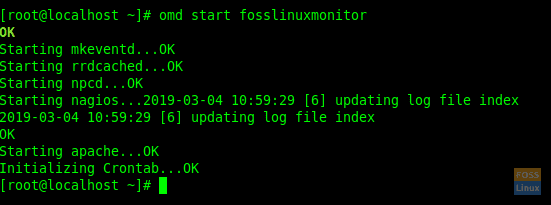

Start Check-MK-Server
Start Check-MK-Server

Step 6 – Access Check_MK on Webbrowser

When you create Check_MK server, it shows Web Interface URL. You can use it to access your Check_Mk Server.

http://<servername>/<instance_name>/
Eg:- http://10.94.10.208/fosslinuxmonitor

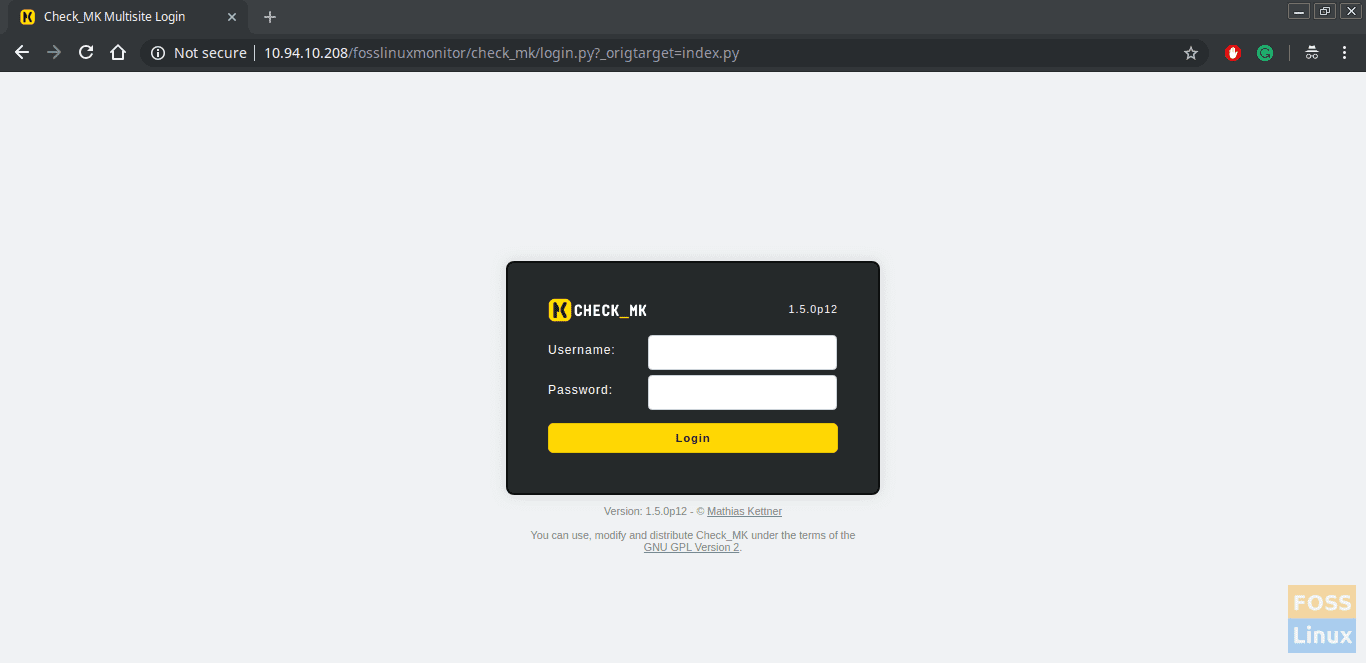

Login Page
Login Page

You can use username and password which showed on Check_Mk server creation. Then you can access the Dashboard.

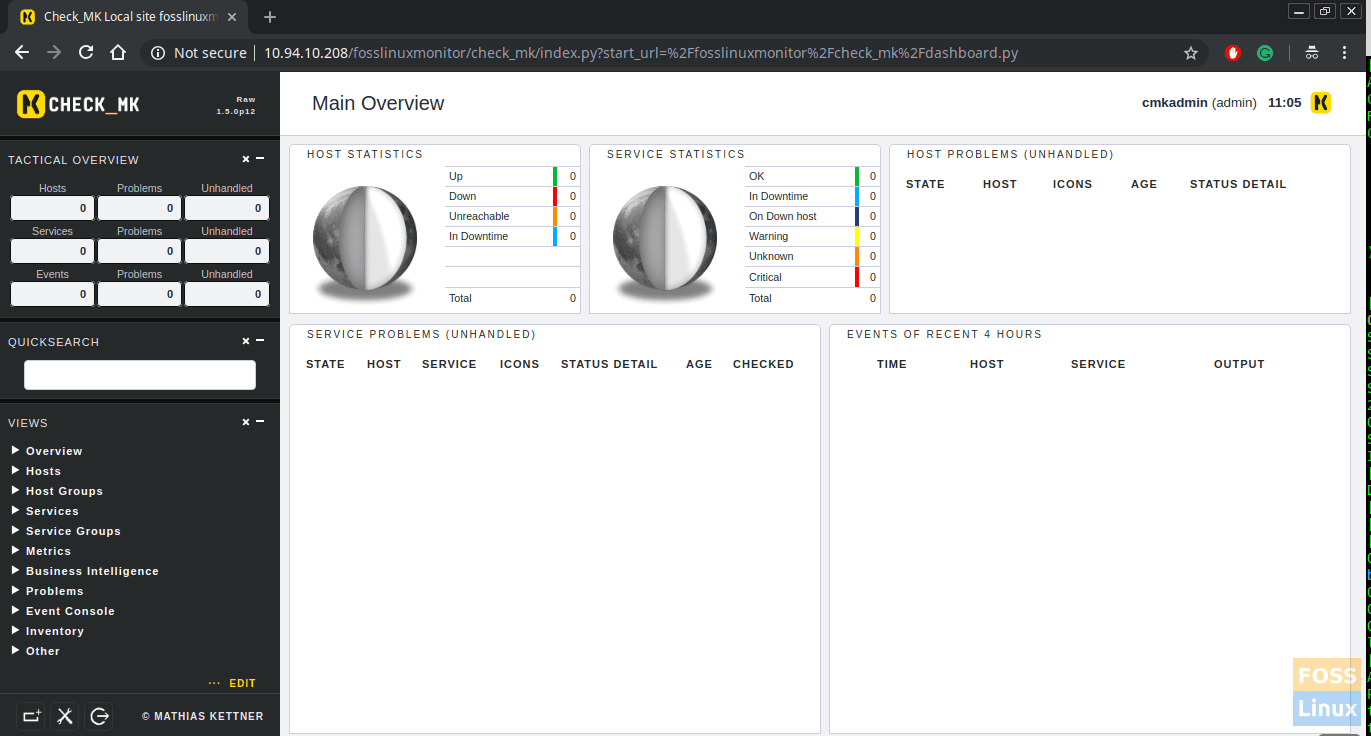

Dashboard
Dashboard

Step 7 – How to install the Check_Mk agent on Linux client

You can download check_mk Agents from the following URL

http://<servername>/<instance_name>/check_mk/agents/
Eg:- http://10.94.10.208/fosslinuxmonitor/check_mk/agents/

Check-mk Agents

Check-MK AgentsOn Ubuntu Server, install “xinetd” before installing Check_MK agent.

apt-get install xinetd

Download and install the agent.

wget http://10.94.10.208/fosslinuxmonitor/check_mk/agents/check-mk-agent_1.5.0p12-1_all.deb
dpkg -i check-mk-agent_1.5.0p12-1_all.deb

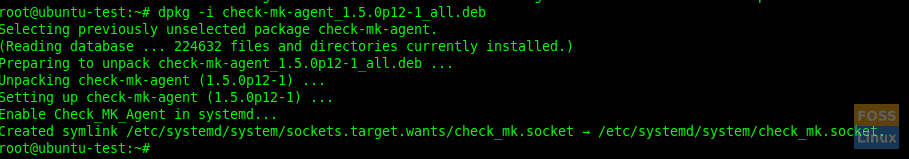

Install Agent On Ubuntu
Install Agent On Ubuntu

In addition to that Port 6556 TCP should be open between check_mk server and client for communication. Install Check_MK agent on CentOS.

Install “xinetd”.

yum install xinetd

Download and install the agent.

http://10.94.10.208/fosslinuxmonitor/check_mk/agents/check-mk-agent-1.5.0p12-1.noarch.rpm
rpm -ivh check-mk-agent-1.5.0p12-1.noarch.rpm

Install Agent On Microsoft Windows server. Download agent.

http://10.94.10.208/fosslinuxmonitor/check_mk/agents/windows/check_mk_agent.msi

Install agent using “msi” package.

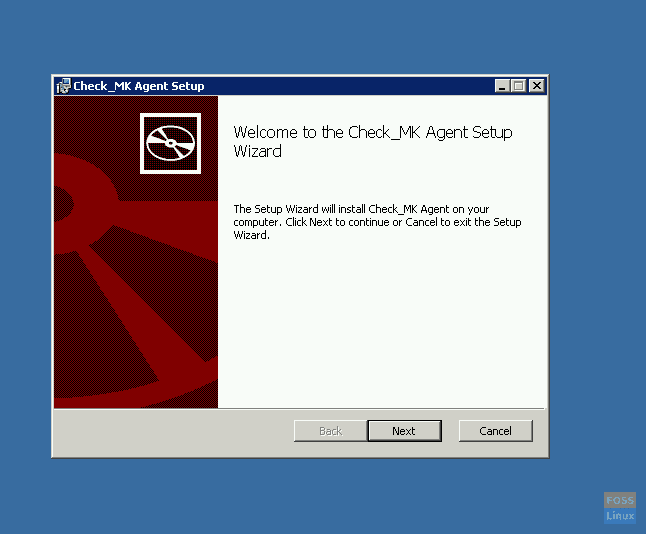

Install-On-MS-Windows
Install-On-MS-Windows

Click finish after installation.

Step 8 – Add Hosts in check_mk monitoring

Now click on WATO configurations > Hosts > Create new host.

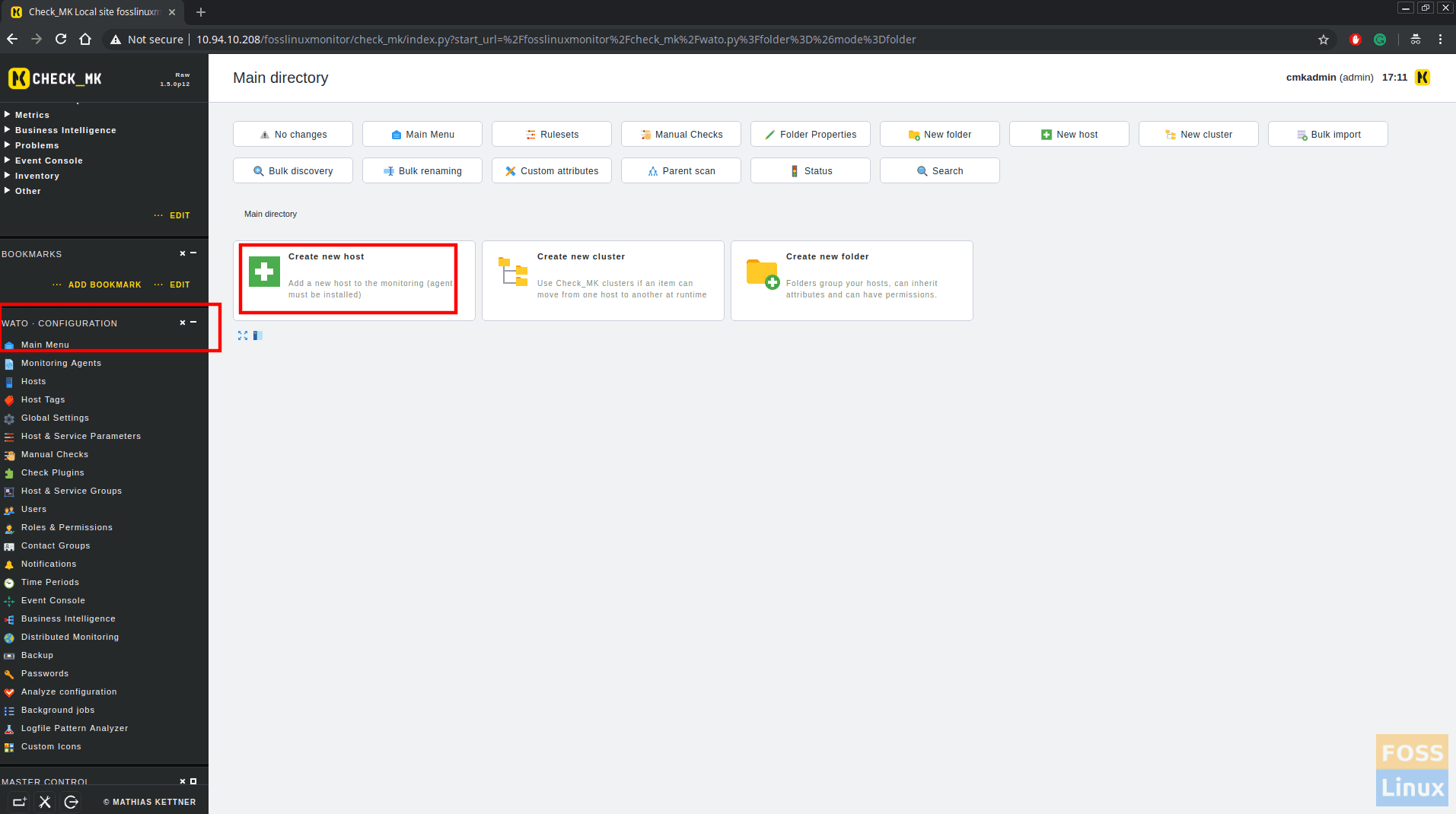

Add New Host
Add New Host

Then fill host details, Hostname, IP address.

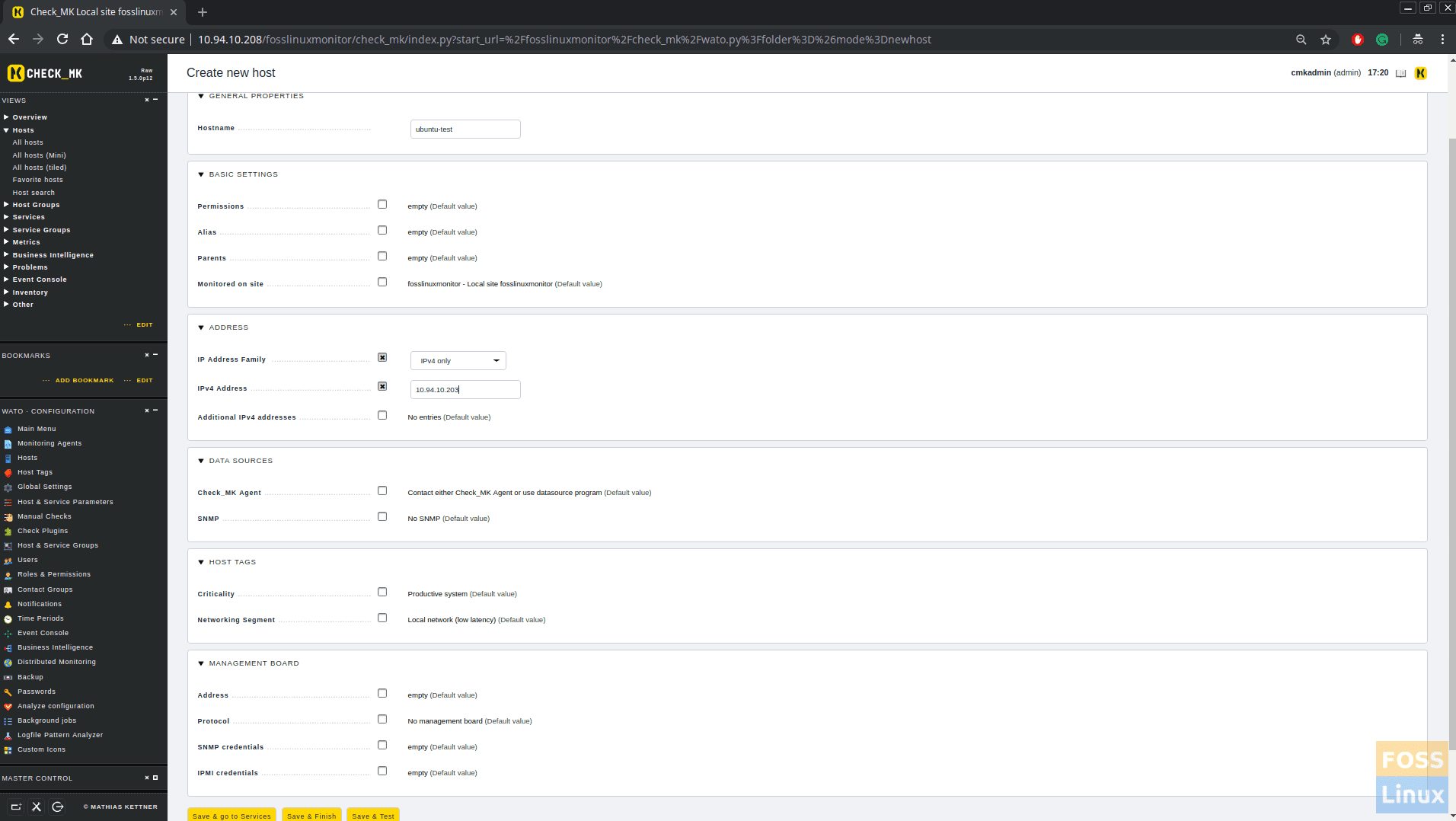

Fill-host-Details
Fill-host-Details

Now click ‘Save & Goto services‘. You will get below the screen in which check_mk discovers services on the client.

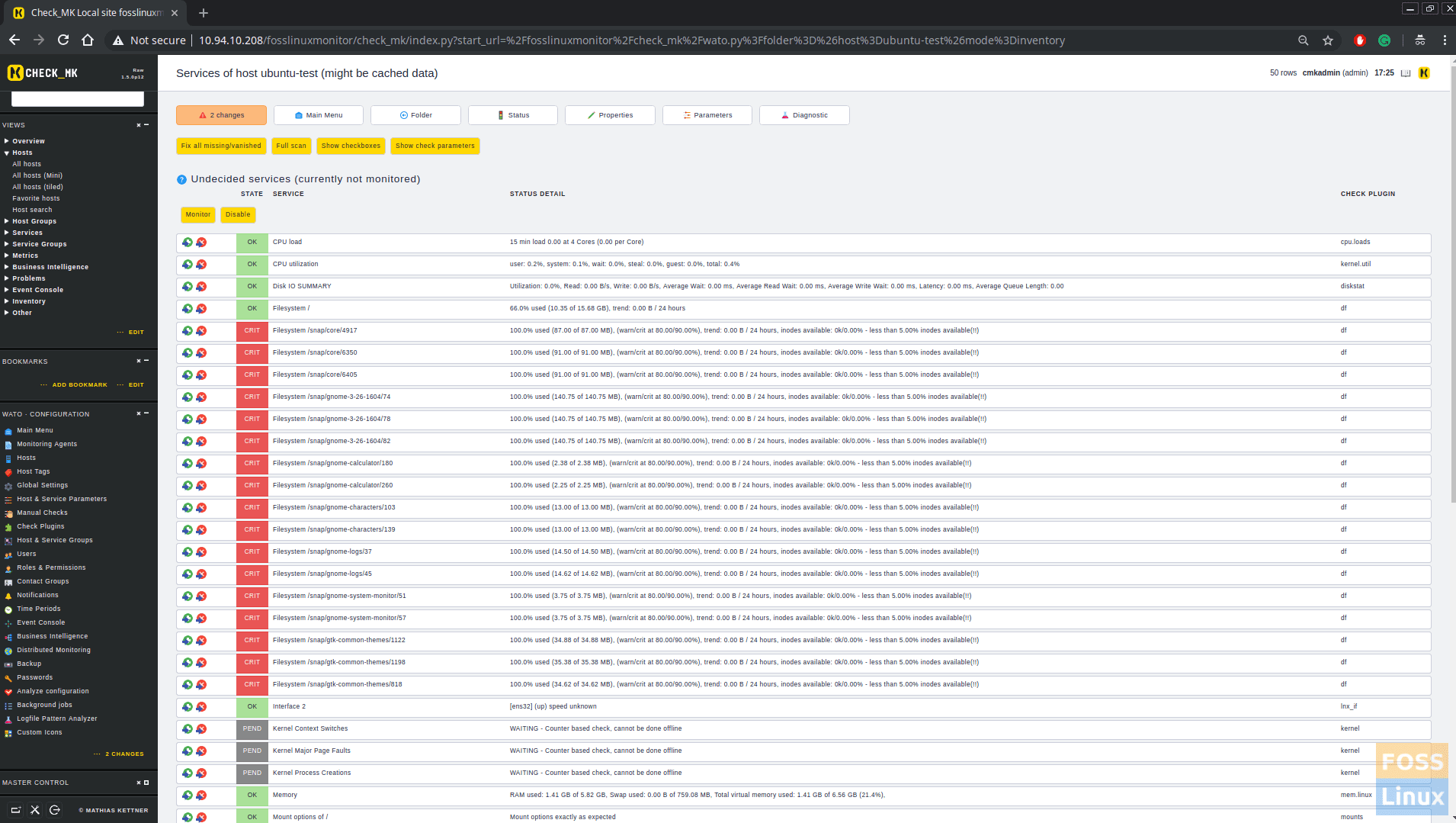

Services-Of-Added-Host
Services-Of-Added-Host

Then click on “Activate changes ” to activate all configurations.

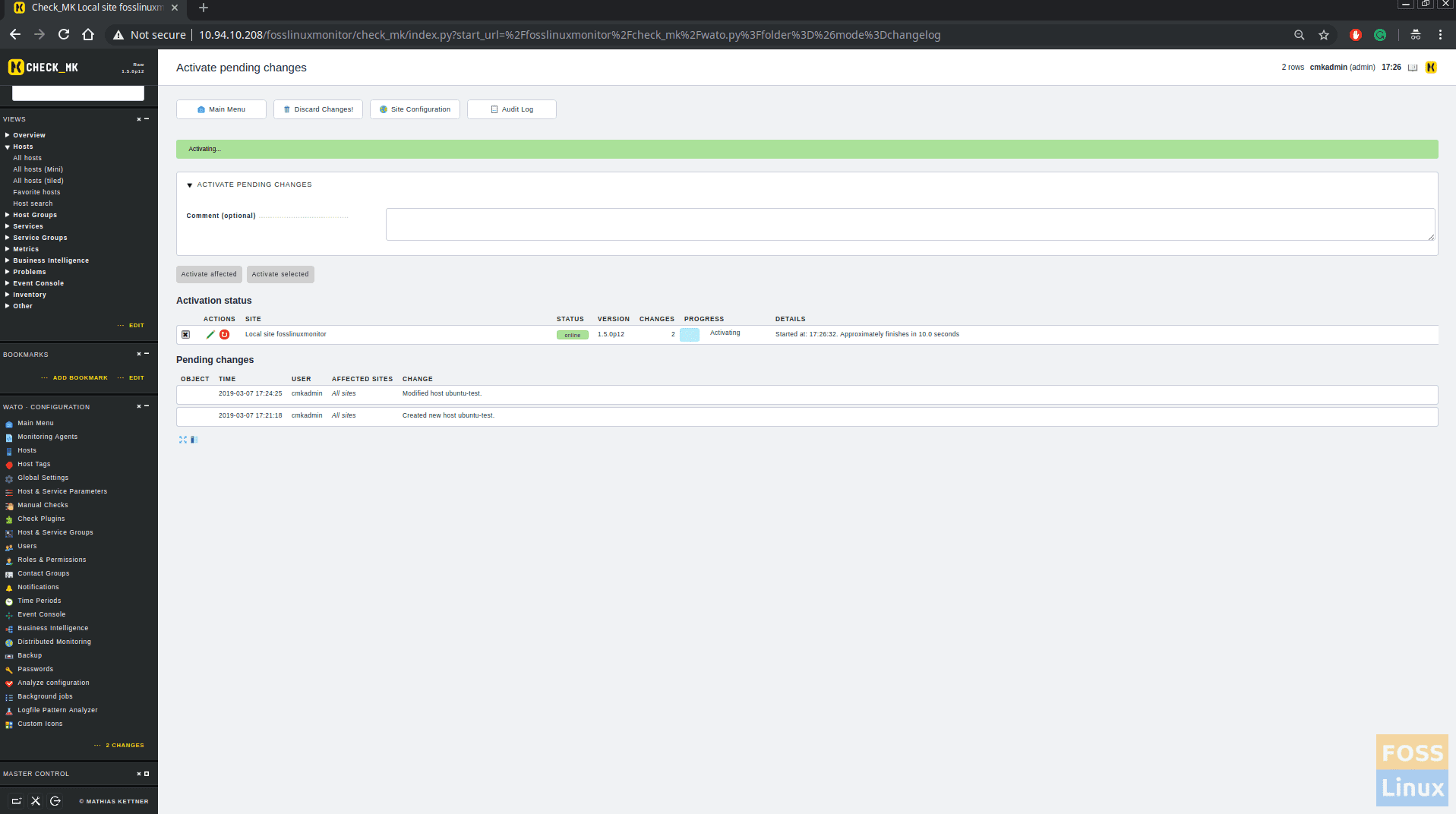

Activating Changes
Activating Changes

You can add more host like this. In my case, I have added CentOS, Ubuntu and MSWindows machine. Click On WATO configurations > Hosts and you can see all added hosts.

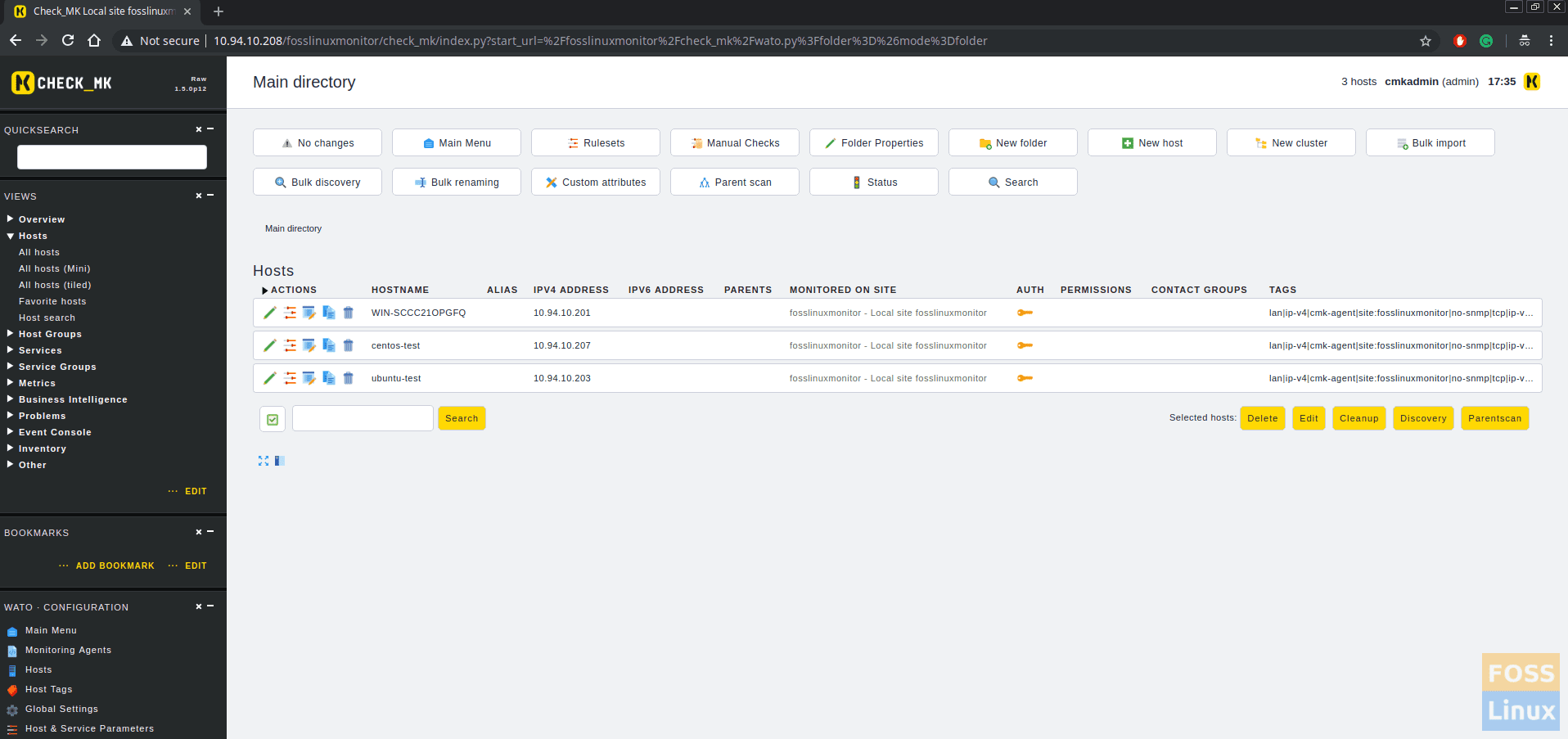

Added Hosts
Added Hosts

Click on Views -> Hosts -> All Hosts. You can see all the added host status.

All-Hosts Status
All-Hosts Status

Step 9 – Add New User to Get email alerts

Click on WATO configurations > Users.

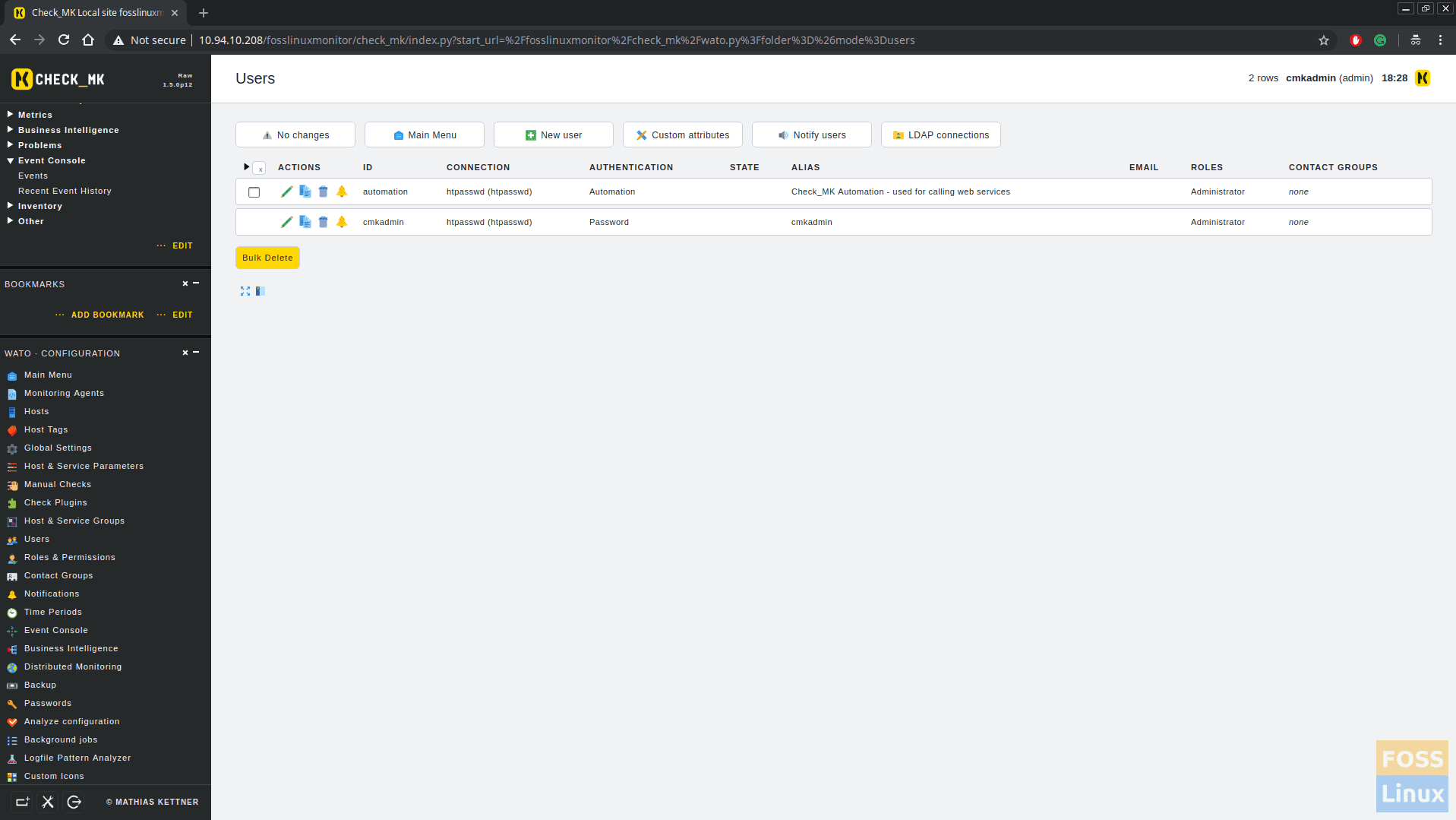

Add-New-user
Add-New-user

You can add user name, email etc. In addition to that select “Receive fallback notifications” too.

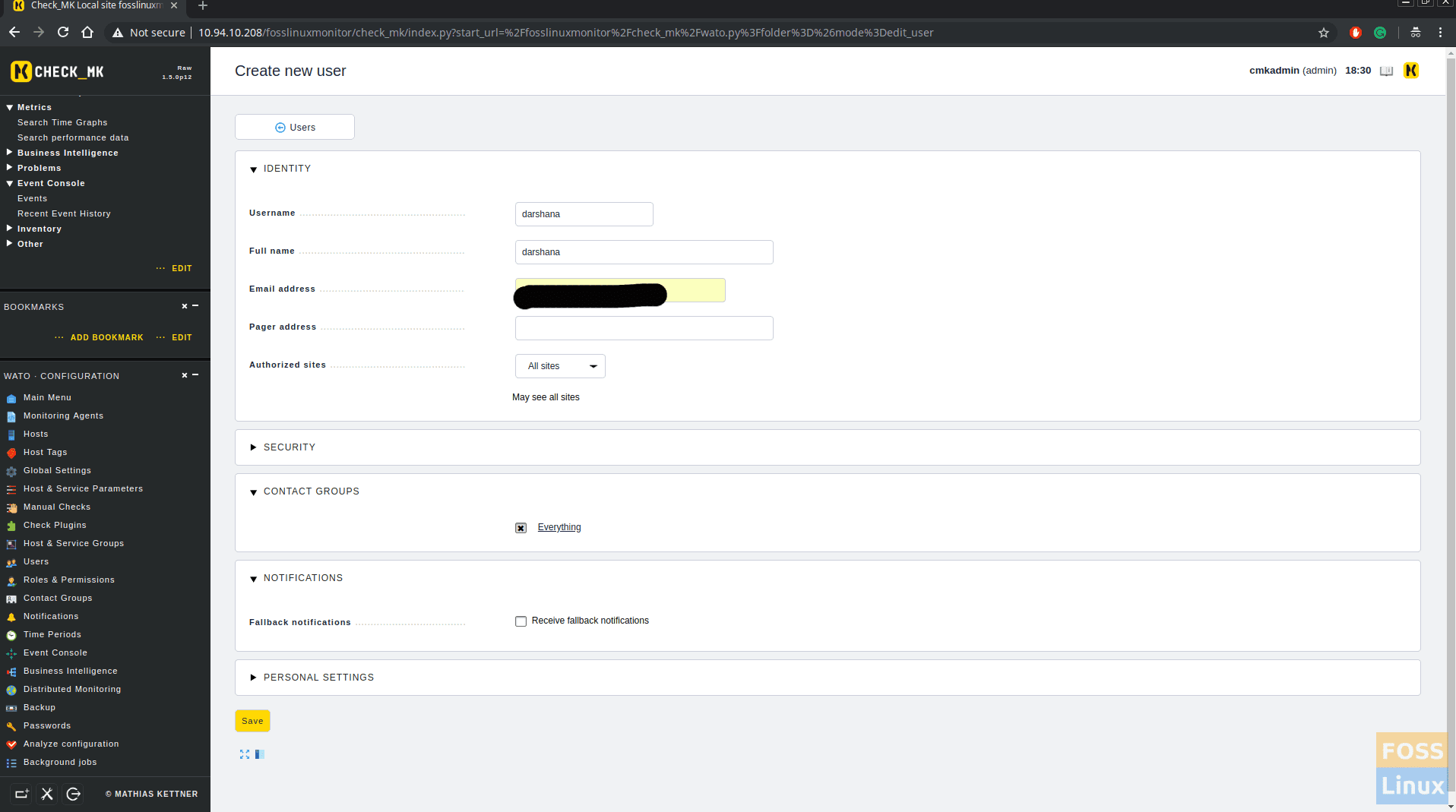

Add User Details
Add User Details

Save, click changes and activate it. Now go to WATO configurations > Hosts and click on any Host. In the Basic Settings area move “Everything ” to the selected area.

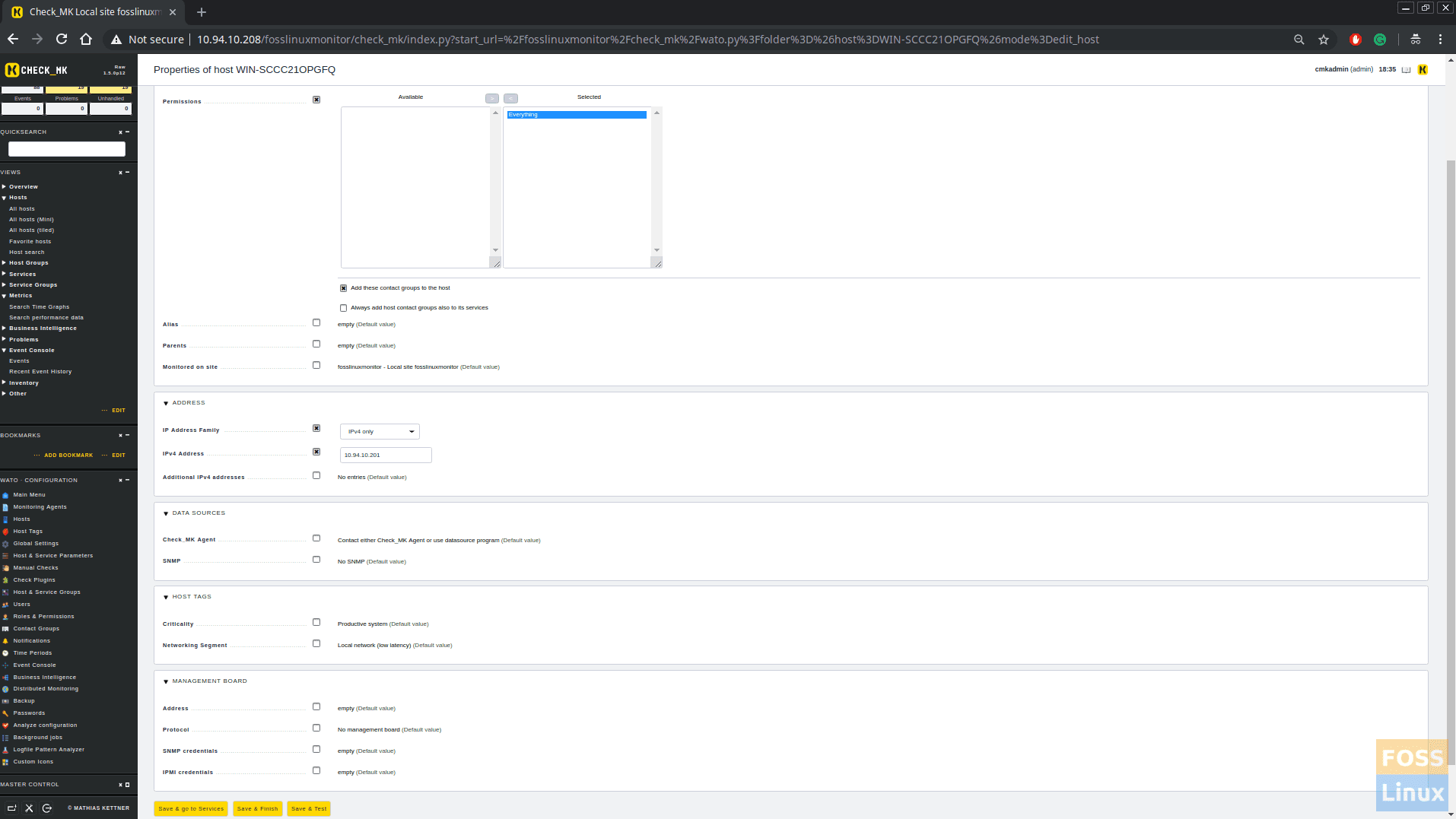

Modify Host Configurations
Modify Host Configurations

Save and do the same to all hosts. Click on hosts

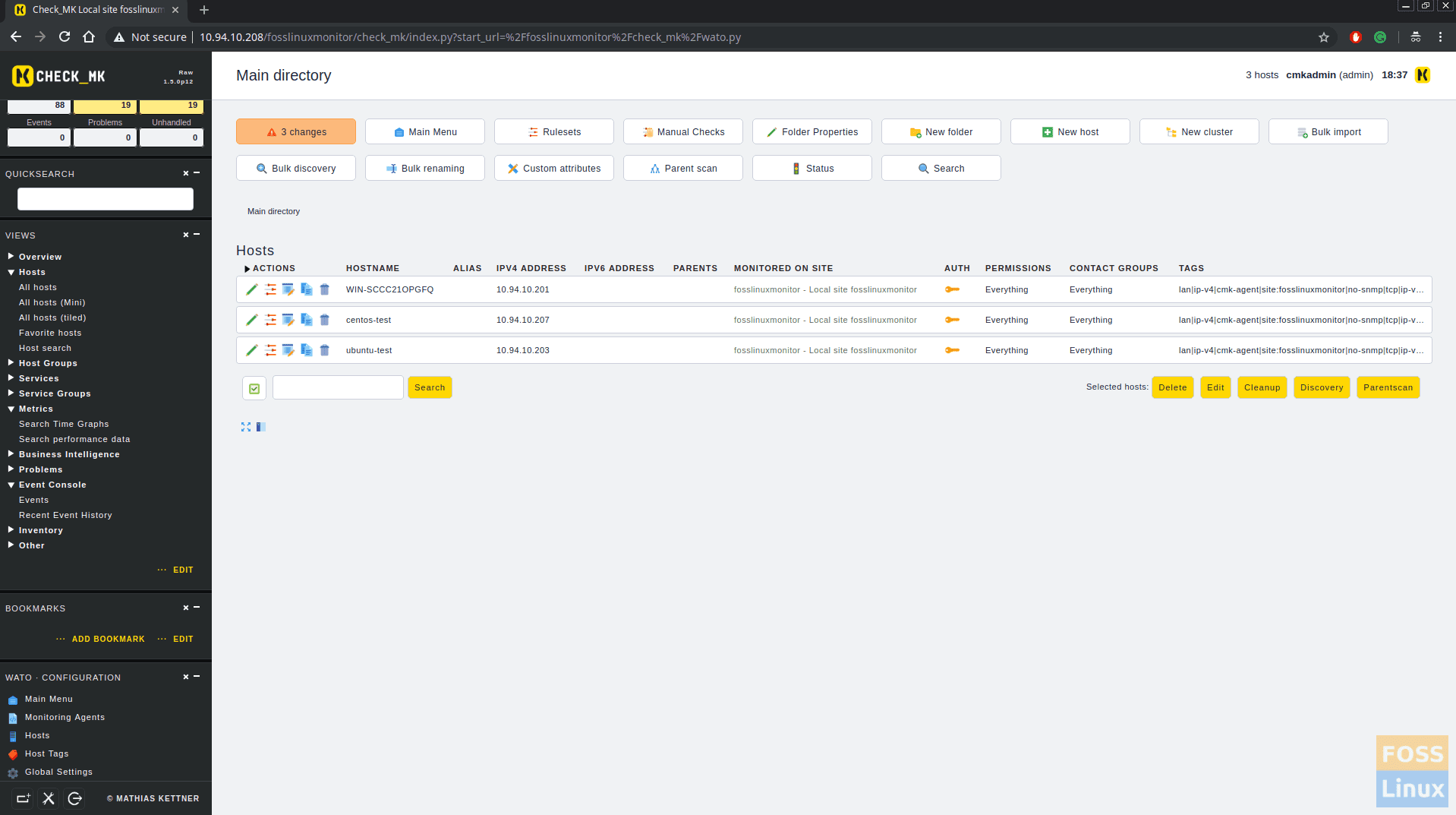

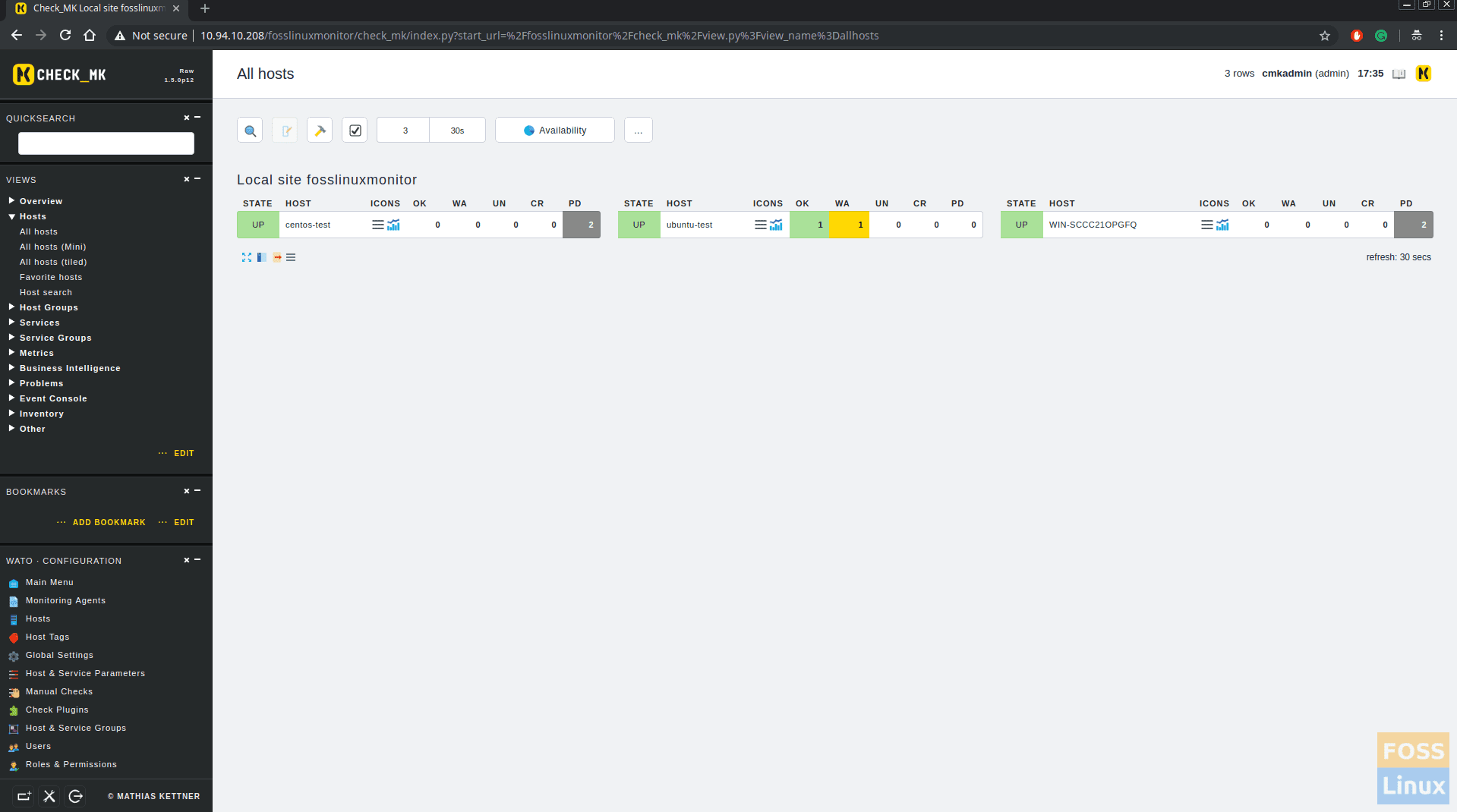

All Hosts
All Hosts

Click on changes and activate it.

Step 10 – Check email Alerts

Now we will shut down one machine. You should see hosts status as Down.

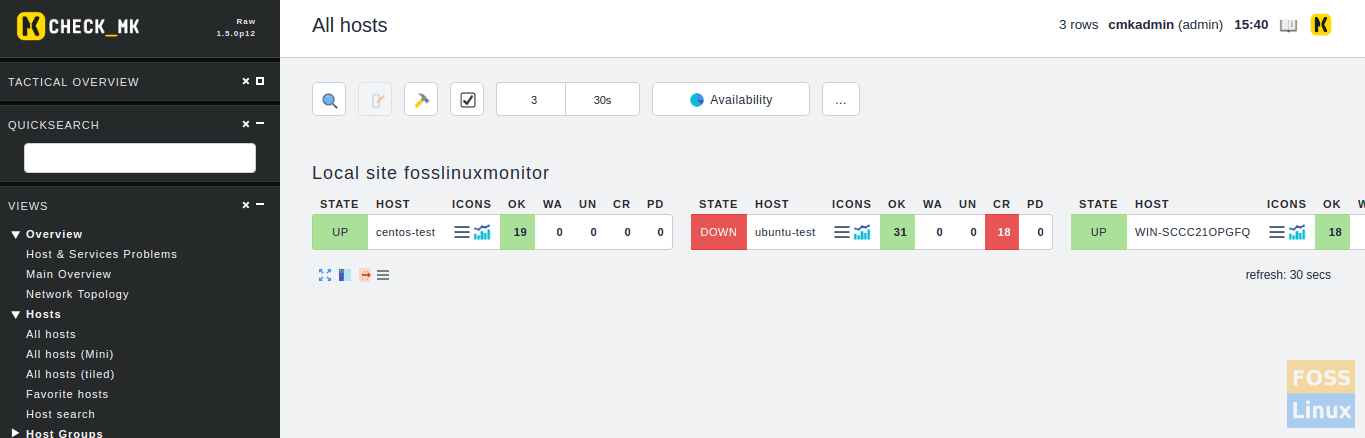

System Status
System Status

Now we get Email alert.

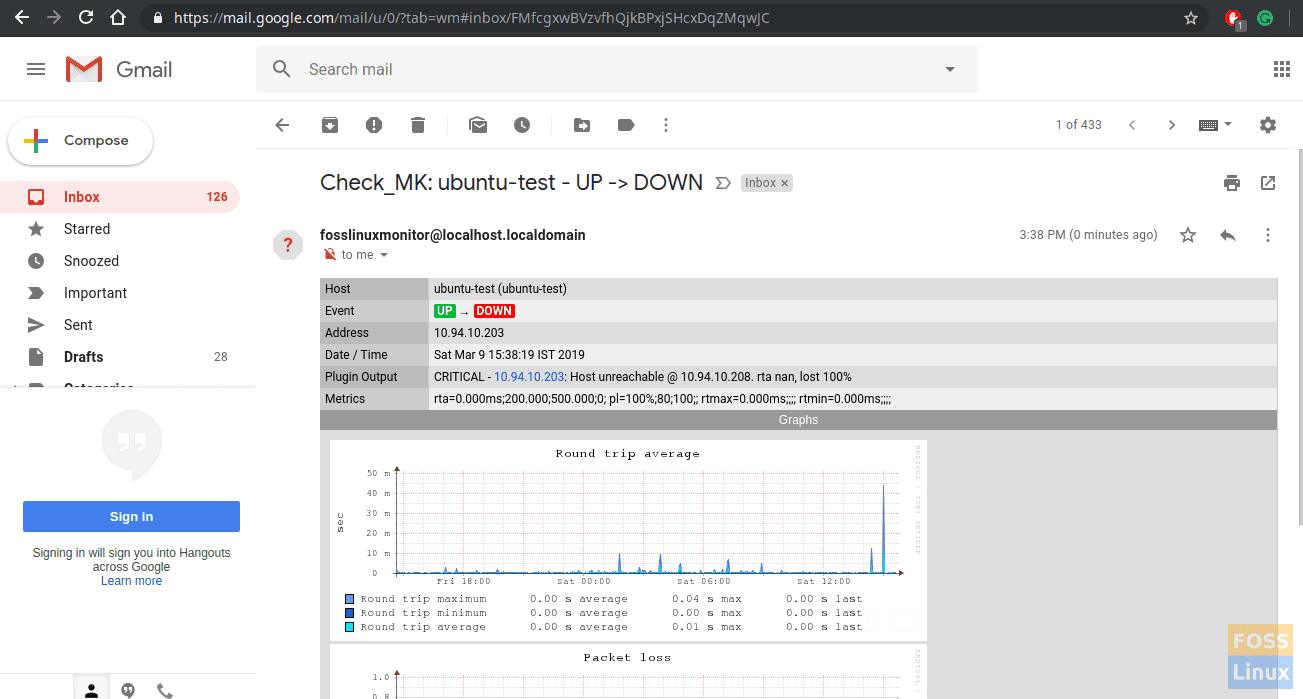

Server-Down Email Alert
Server-Down Email Alert

You will get other systems alerts similar to this. After you start the server you will get another alert.

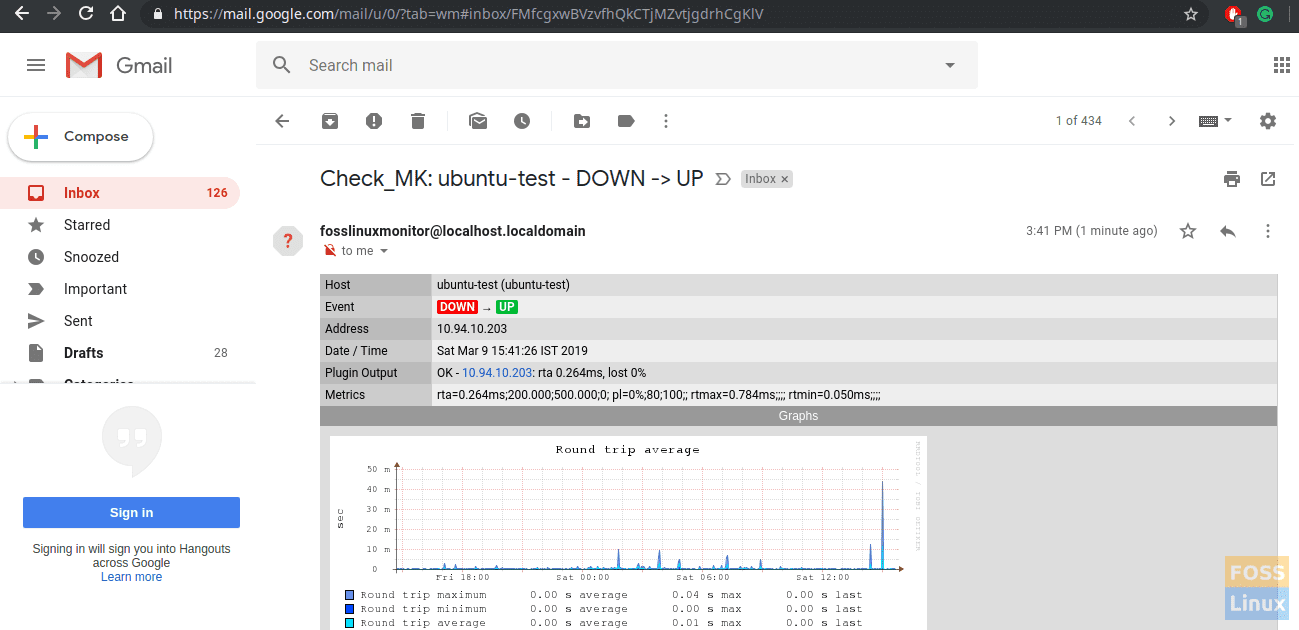

Server-Up Email Alert
Server-Up Email Alert

You can integrate alerts with Slack, Pager durty and so on.

Now you successfully installed and configured Check_MK server on CentOS. Let us know your experience in the comments below. Also, please don’t forget to share the tutorial with your friends on social platforms.
